Honor-1816 Genetic Analyzer
Honor-1816 Genetic Analyzer
World's First 8-Color Genetic Analyzer
Domestic initiative product, breaking the monopoly of foreign companies
8-color fluorescence technology, integrated solution to autosomal + Y-chromosomal database construction
Fluorescence excitation efficiency 40% higher than that of foreign competing products
Product Introduction

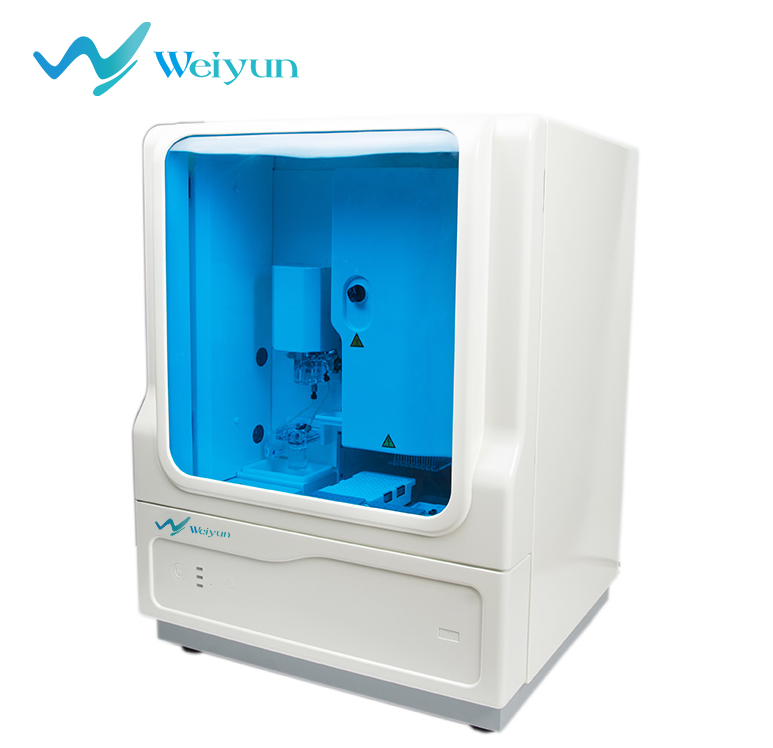

The Honor-1816 Genetic Analyzer is a 16-channel capillary electrophoresis genetic analyzer developed by Nanjing Weiyun Biotechnology Co., Ltd. Based on Sanger sequencing method, it is suitable for fragment analysis and DNA sequencing, and meets the needs of basic research of molecular genetics and clinical research of precision medicine.
The Honor-1816 Genetic Analyzer is equipped with 16-channel capillary arrays, a 505 nm single-channel solid-state laser excitation source, a computer workstation, and data acquisition & analysis software. The entire system provides high-throughput DNA fragment analysis, sequencing, preliminary base detection, and automatic fragment screening analysis.
Technical Advantages
● All-open detection platform features great compatibility with mainstream reagent kits.
● World's first 8-color genetic analyzer, breaking up the monopoly of foreign companies.
● Scalable 8-color 16-channel platform provides integrated solution to autosomal + Y-chromosomal database construction.
● 6 invention patents, 10 utility model patents, and 4 software copyrights.
● EU CE and ISO certifications obtained.
Components
● Optical system:
laser, fluorescence testing module, area array CCD detector, automatic 3D sampler, automatic gel injection module, high-voltage power, incubator, embedded central measurement and control circuit, drive and control circuits for each component.
● Supporting consumables:
capillary array, buffer, gel, formamide, fluorescence calibration substances.
● Software applications:
DNA data acquisition software, forensic DNA fragment analysis software
Technical Parameters
Honor-1816 Genetic Analyzer | |
Function | Sequencing, fragment analysis |
Laser Source | 30mW long-life semiconductor solid-state laser |
Number of Channels | 16 (scalable) |
Analysis Length of Fragment | 800bp |
Detection Method | Laser-induced fluorescence CCD automatic acquisition |
Wavelength Range | 530~700nm |
Maximum Detection Throughput | En > 16 (sample/h) when fragment length < 500 bp |
Number of Fluorescent Dyes | 8-color |
Temperature Control Accuracy ΔT | ＜0.2℃ |
Size | 812mm×610mm×532mm |
Resolution | 1 bp |
Weight | 120 kg |
Accuracy | ＜0.12 bp; |
Forensic DNA Data Acquisition and Preprocessing Software | Real-time acquisition, analysis and display of DNA mapping data; spatial correction, spectral correction and automatic evaluation of correction effect; automatic generation of DNA data files; automatic planning of sample operation; automatic monitoring of instrument platform, and keys components can be manually controlled. |
DNA Sequencing Software | DNA data correction, sequence generation and quality evaluation |
Genotyping Software | Genotyping and quality evaluation |
Basic Functions

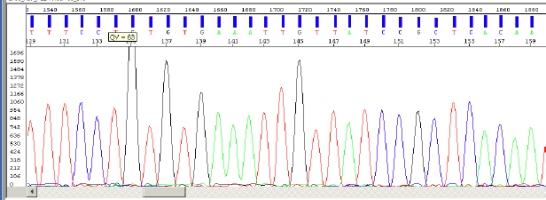

Sequencing
Detection of Base Sequences in DNA Fragments
● DeNovo sequencing
● Re-sequencing
Mutation detection, SNPs, insertions, deletions
Cloning product validation
Genome comparison
● Typing
Microbial and fungal identification
HLA typing
Virus typing
● Other
Methylation analysis (bisulfite sequencing)

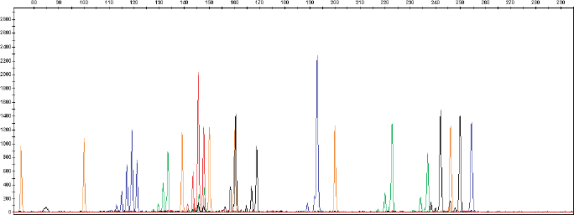

Fragment Analysis
Isolate fragments with fluorescent labels and detect relative size
● Micro-satellite / STR
Human identification
Chimera research
Customized micro-satellite
Micro-satellite instability
● Relative Fluorescence Quantification
LOH
MLPA
● SNP Typing
SNaPshot
● Fingerprinting
AFLP
● TILLING
