NC22Plex STR Detection Kit

Brief Introduction of NC22Plex STR Detection Kit


Features of NC22Plex STR Detection Kit

1. 5-color fluorescent detection platform, which can carry out multiple amplification and detection on 20 supplemental loci, 1 CODIS locus and 1 sex locus specified in the Standard of Judicial Identification.

2. Super high resolution, sensitivity and anti-inhibitor ability.

3. Rapid amplification, the amplification time is less than 1.5 hours.

4. Combined with our 21 Plex STR Fluorescent Detection Kit, the number of detected loci can reach 39.

5. Meet the "Code for the Implementation of the Identification of Full Biological Syndrome" published by the Judicial Administration of Justice of the Ministry of Justice of PRC in 2014,  it recommends to increase the number of detected loci from 19 to 29 or 39.

6. Strong compatibility, compatible with the direct amplification of various samples and the amplification of purified DNA.

7. Can be used in forensic analysis, kinship detection and scientific research for human genetic identification.

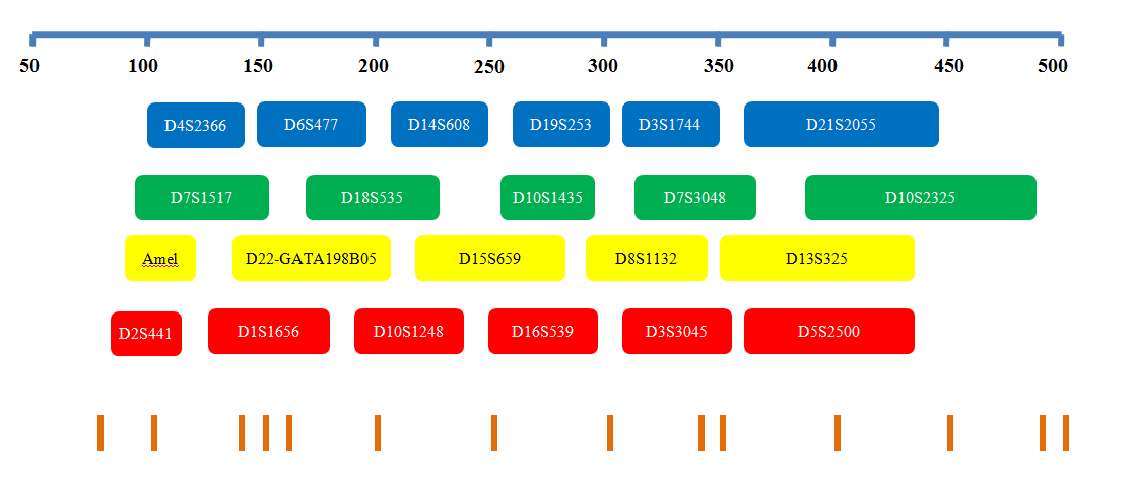

Loci Arrangement Diagram of NC22Plex STR Detection Kit

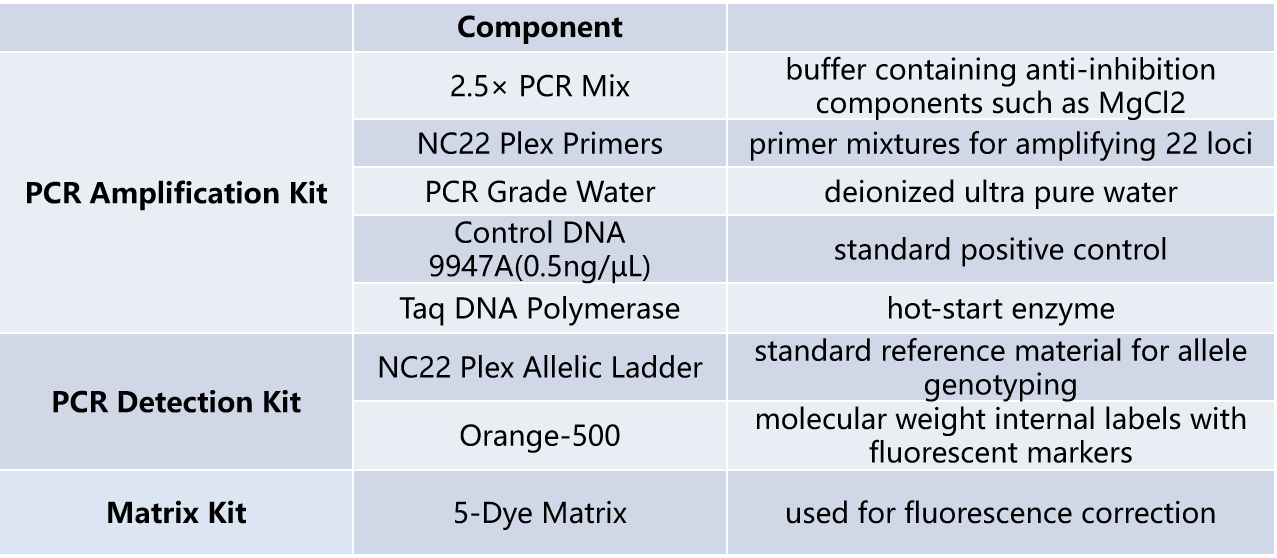

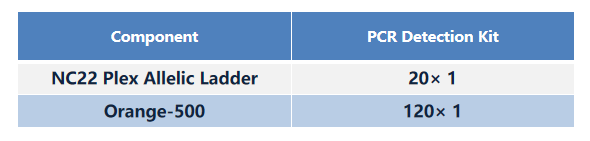

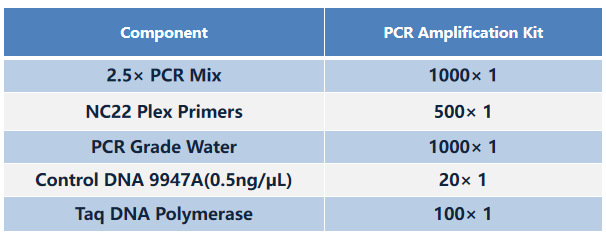

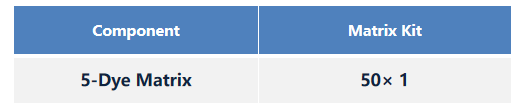

NC22Plex STR Detection Kit (25L×100 Reactions/Kit)

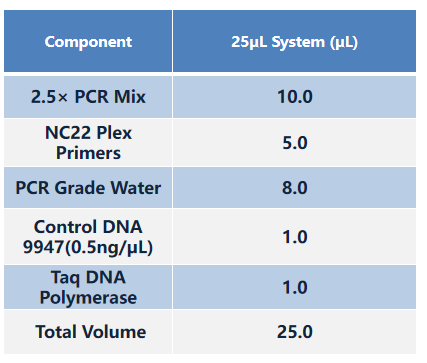

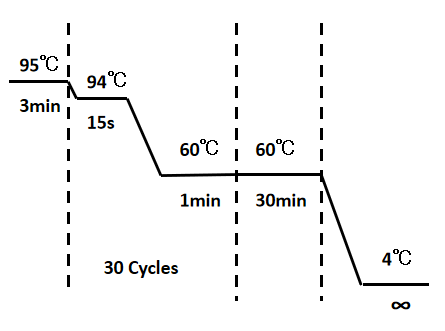

Reaction System and PCR Program of NC22Plex STR Detection Kit

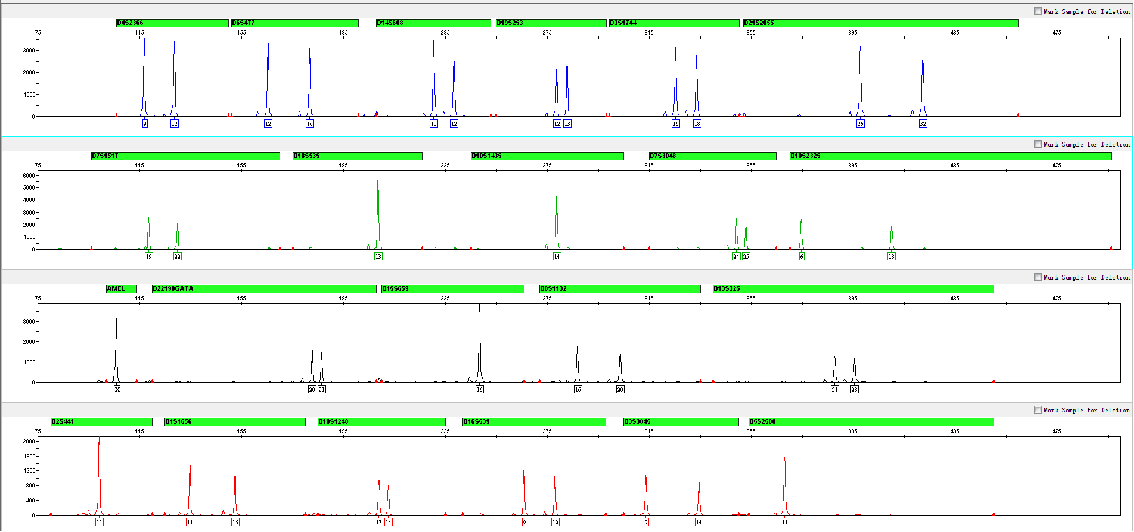

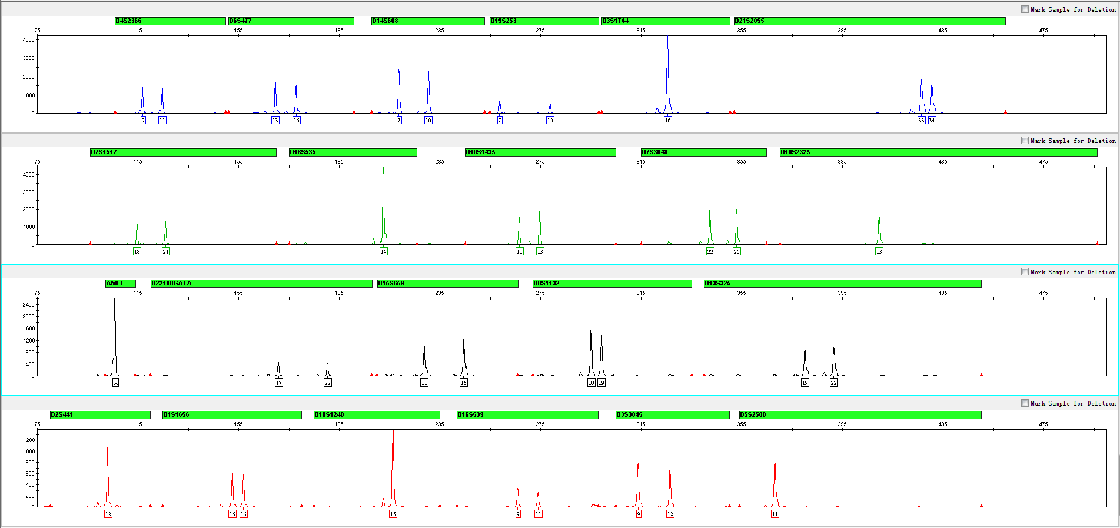

Amplification Results of Positive Control 9947A on 3130xl

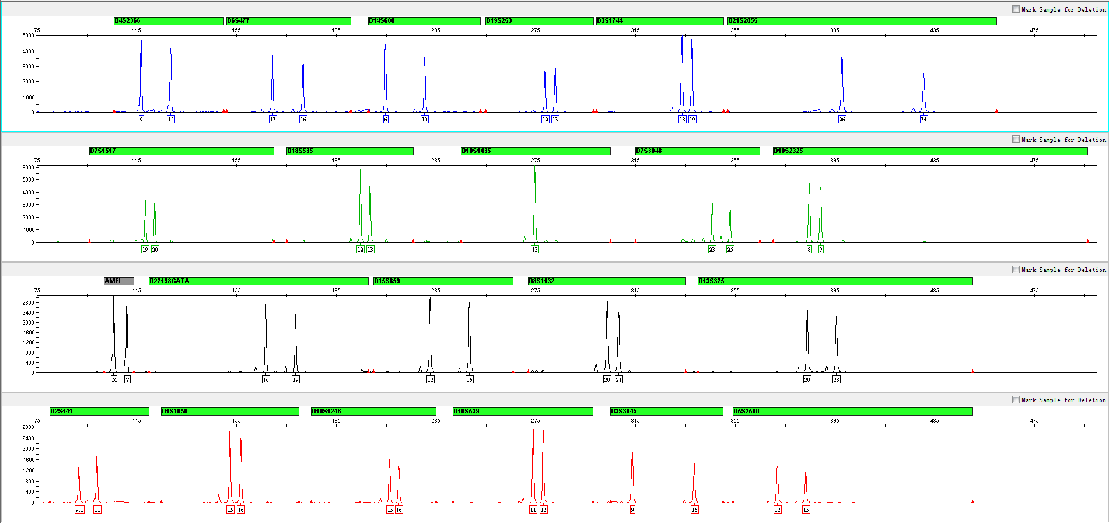

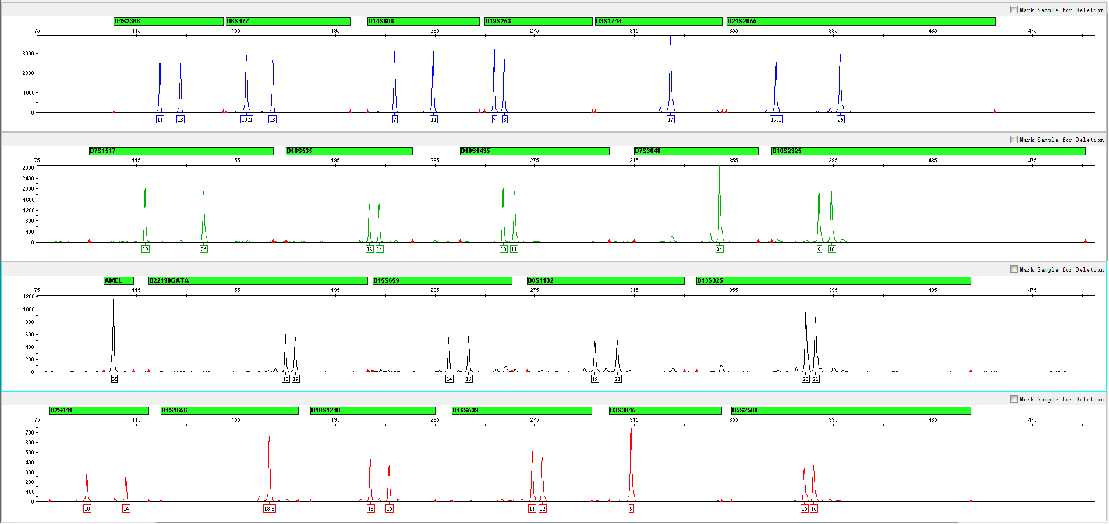

Amplification Results of  Blood on FTA on 3130xl




Amplification Results of  Blood on Filter Paper on 3130xl




Amplification Results of Saliva on FTA on 3130xl
